Product Details:
|
| Model Size: | 320 * 160mm | Module Resolution: | 172 X 86 Dots |
|---|---|---|---|
| Cabinet Size: | 640 X 480mm | Led Lamp: | KINGLIGHT 1515 |
| Scan: | 43S | Life Span: | 100000h |
| High Light: | Asynchronous Small Pixel Led Display,led wall movie 640*480mm,full hd led display 172*86dots |
||

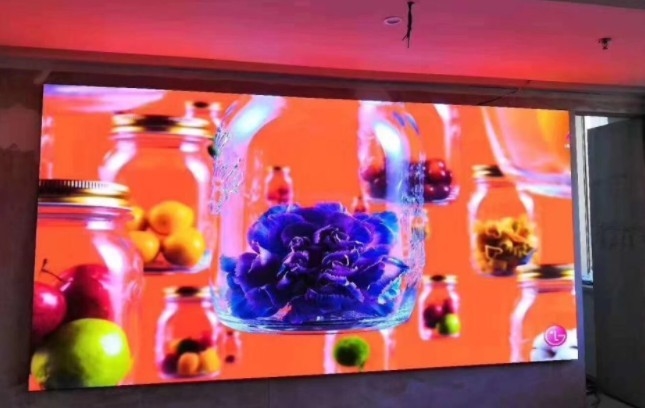

Small Pixel Led Display 640 X 480mm HD P1.86 Led Video Wall On Cinema
Functions and Advantages :
1 . High refresh rate : With NOVA STAR control system , no scanning line when photographed ;
2 . High gray level : 256 RGB each , display 16.7M colors , vivid and perfect video effect ;
3 . High resolution : The most apparent features of the new generation of LED display ;
4 . Good color uniformity : With brand Lamp Nationstar and high refresh MBI5124 IC .
Specifications :
|
Indoor P1.86 LED Screen |
||||||
|
Part I Technicial Parameters |
||||||
|
Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
1.86mm |
||||
|
2 |
Module Resolution |
W172×H86dots |
||||
|
3 |
Module Size |
320*160mm |
||||
|
4 |
Led Packing |
1515 |
||||
|
5 |
IP Rate |
43 |
||||
|
6 |
IC |
6363 |
2065 |
|||
|
7 |
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
||||||
|
1 |
Cabinet Size |
640*480mm |
||||
|
2 |
Module Qty |
W2X H3 =6PCS |
||||
|
3 |
Physical Resolution |
W344×H258dots |
||||
|
4 |
Power Consumption(MAX.) |
200 W/m2 |
||||
|
5 |
Power Consumption(AVE.) |
120W/m2 |
140W/m2 |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
288906 dots/m2 |
||||
|
8 |
Net Weight |
7.5Kg |
8Kg |
|||
|
Screen Specification |
||||||
|
1 |
Brightness |
≥600cd/m2 |
≥670cd/m2 |
|||
|
2 |
Colors |
16.7 trillion |
||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
1.9-15m |
||||
|
6 |
Refresh Rate |
≥1920~3840Hz |
≥3840Hz |
|||
|
7 |
Drive Mode |
1/43s |
1/57s |
|||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
FAQ :
|
Question 1: How can I trust your LONGDA LED factory ? |
|
Answer : Yes, when you talk with us now , we are here . We do led since 2009 , it is over 12 years . In the past 8 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it . |
|
Question 2: If I need led very urgently , how fast can you finish the goods ? |
|
Answer:How fast you want ?Three days ? One week ? Definite shipping date ? |
|
Question 3: Is it easy to install this led display ? |
|
Answer : If you are new to LED , we will help you to know led from ZERO to Professional . |
